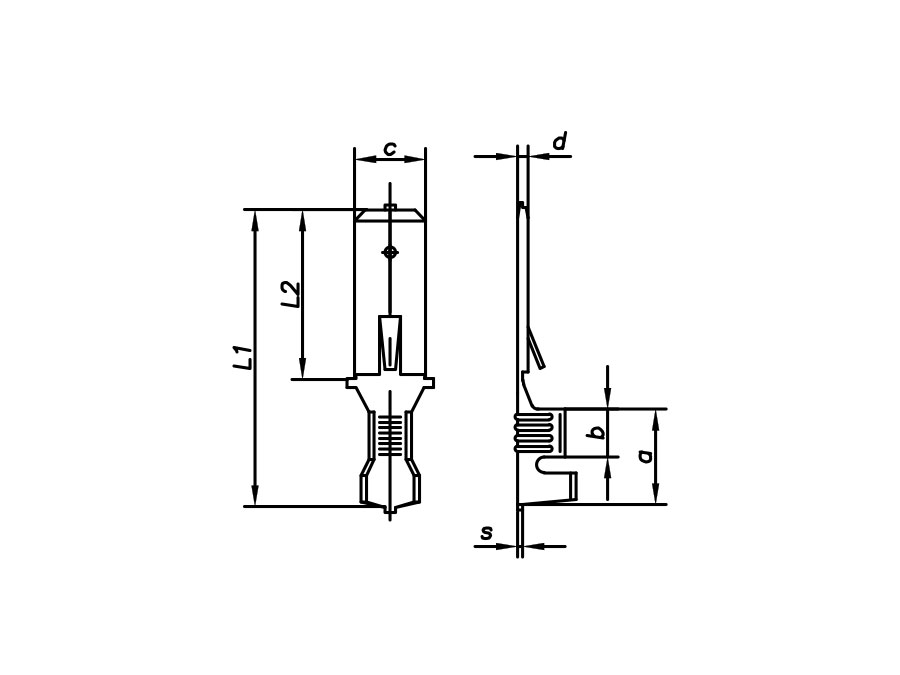

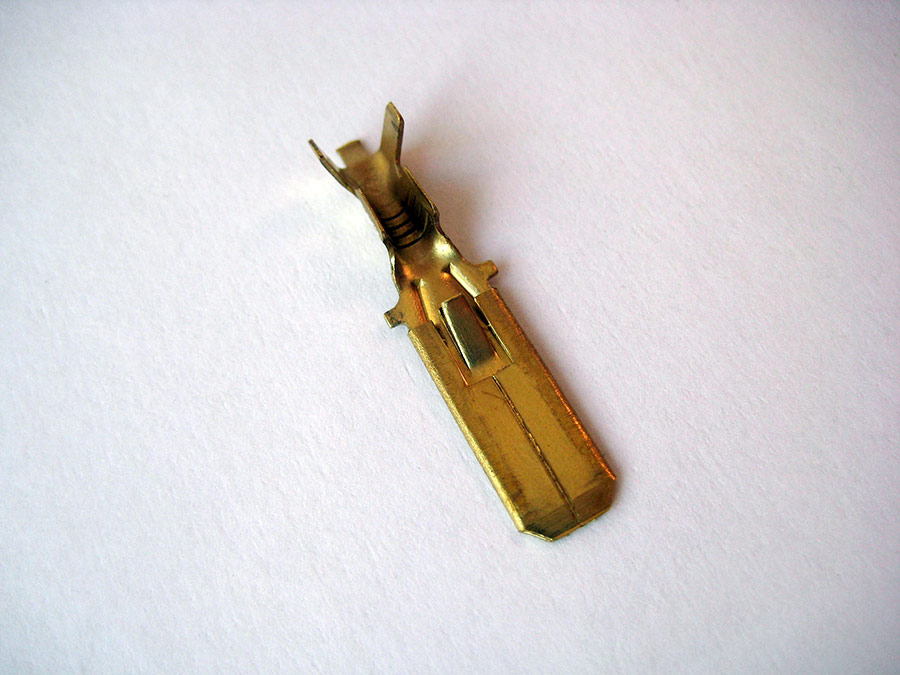

Faston tabs
DIN 46343
| Faston tabs DIN 46343 | ||||
|---|---|---|---|---|
| Insulation diameter (mm) | Wire size range (mm²) | Materijal | Designation in the catalog | |
| c | d | |||
| 6,3 | 0,8 | 1 ÷ 2,5 | CuZn30 | 60012563 |
| CuZn30 tinned | 60032563 | |||
| Faston tabs DIN 46343 | ||||
|---|---|---|---|---|
| Insulation diameter (mm) | Wire size range (mm²) | Materijal | Designation in the catalog | |
| c | d | |||
| 6,3 | 0,8 | 1 ÷ 2,5 | CuZn30 | 60012563 |
| CuZn30 tinned | 60032563 | |||
